A Practical Guide to 2×6 Steel Stud

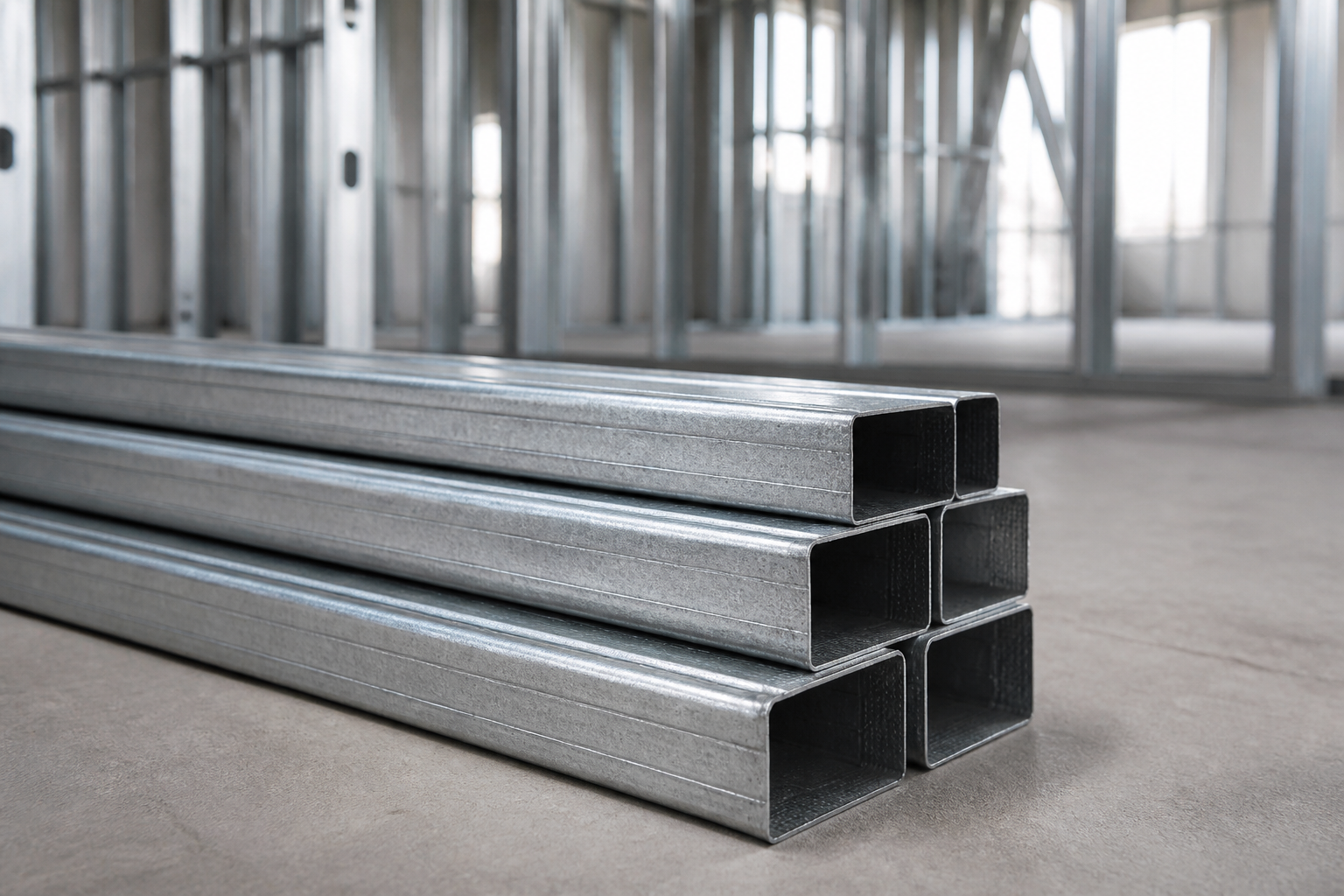

A 2×6 steel stud is a common way people refer to cold-formed metal studs with a nominal web depth in the 6-inch class. Whether you are framing tall interior partitions, planning mechanical chases, or coordinating exterior wall assemblies, understanding how a 2×6 steel stud fits into a complete steel stud framing system helps you specify correctly, estimate accurately, and build efficiently.
This guide breaks down how to interpret sizing, where 2×6 studs are typically used, how they integrate with tracks, channels, and clips, and what to include in your design and installation checklists. It avoids brand-specific assumptions and focuses on durable concepts you can apply across projects.
What is a 2×6 steel stud?
In wood framing, “2×6” usually means sawn lumber with a nominal 2-inch thickness and 6-inch depth. In steel framing, the terminology is different. A 2×6 steel stud typically informally points to a cold-formed steel stud whose web depth is in the vicinity of six inches. The actual designation is usually given in millimeters or in a nominal inch class and paired with a gauge (thickness) and a flange width. Always check a manufacturer’s catalog or load tables to confirm the exact dimensions and section properties for the stud you intend to use.
- Web depth: The dimension that correlates to the “6” in 2×6. Actual depths vary by manufacturer and standard.
- Gauge: Indicates sheet steel thickness. Lighter gauges are typically used for non-load-bearing interior partitions; heavier gauges are used where greater strength is required. Match gauge to your design loads and deflection criteria.
- Flange width and return: These influence screw engagement, bracing compatibility, and finish details.
Because conventions vary, the safest path is to reference the exact product designation (including web depth, flange width, and gauge) rather than relying solely on the informal “2×6” label.
Sizing and nomenclature to know
Steel stud systems use consistent families of components so that studs, tracks, channels, clips, and trims integrate cleanly. When you’re working with a 2×6-class stud, confirm these items up front:
- Stud-to-track fit: Match the stud’s web depth to a compatible standard track or deep track in the same nominal size class.
- Deflection needs: If the assembly requires vertical movement (e.g., floor-to-slab partitions under live load), pair studs with slotted deflection track or appropriate deflection side clips per the design.
- Lateral bracing: Many designs call for bridging/carrying channel, bridging clips, or windbrace to control out-of-plane buckling or provide lateral restraint.
- Acoustic layers: For sound control, resilient channel is often specified between studs and gypsum.
- Finishing details: Trims such as J trim, L trim, J track, and 90°/130° cornerbead resolve edges and intersections.
Tip: Keep a simple matrix of stud sizes and the matching tracks, clips, and channels you stock or specify. This reduces field substitutions and RFI churn.
Common applications for 2×6 steel studs
While project requirements vary, a 2×6-class stud is commonly selected for:
- Taller interior partitions: The increased web depth compared to narrower studs can help meet deflection or height requirements when properly designed.
- Mechanical and plumbing chases: Extra cavity depth accommodates ducts, risers, or multiple layers of insulation or services.
- Exterior wall assemblies: Where depth is needed for insulation thickness or to meet specific wall performance targets, designers may select deeper studs in appropriate gauges.
- Openings and jambs: Deeper sections can be useful around doors, windows, and other openings when reinforced per design details.
Structural requirements depend on loads, spans, and local conditions. For load-bearing use or where wind/seismic criteria govern, consult the project’s qualified design professional and the applicable product load tables. Do not rely solely on informal sizing rules.
How a 2×6 stud integrates with the rest of the system
Cold-formed steel framing works as a coordinated system. Here is how key components often interact with a 2×6-class stud within a typical wall assembly or ceiling interface:
- Tracks
- Standard track: Baseline head and base track sized to the stud web depth.
- Deep track: Provides more bearing/engagement, often helpful for tall walls or specific detailing.
- Channels and bracing
- Bridging/carrying channel: Installed through stud punch-outs or across flanges to brace studs and improve stability.
- Windbrace: Used where specified to resist lateral loads or stiffen assemblies.
- Furring channel: Creates a leveling layer or decoupling space for finishes.
- Resilient channel: Introduces acoustic decoupling between the stud and gypsum board.
- Clips and connectors
- Deflection side clip: Facilitates head-of-wall deflection details when slotted track is not the chosen method.
- Webslide clip: Allows controlled movement/adjustability at specific connections per detail.
- Bridging clip: Attaches bridging/carrying channel to studs.
- Trims and edges
- J trim, L trim, J track: Edge and termination solutions for gypsum and panel interfaces.
- 90°/130° cornerbead: Reinforces and finishes outside corners at standard and specialty angles.
- Z-Bar and L track: Utility profiles used for transitions, reveals, or specialty mounting conditions.
- Wire and accessories
- Hanger wire and tie wire: For suspended assemblies and securement tasks where specified.
- Flat strips and utility angles: Supplemental reinforcement or blocking.
When you pick a stud depth, the rest of the system should be selected and detailed to match. This coordination impacts layout, bracing frequency, head-of-wall detailing, and finishing tolerances.
Design and specification checklist
Use this concise checklist to vet whether a 2×6-class stud is appropriate and fully coordinated in your documents. For structural questions, defer to a qualified professional.
- Intent: Is the wall load-bearing or non-load-bearing? Confirm the governing loads (dead, live, wind, seismic) and required serviceability limits (e.g., L/240, L/360, or per spec).
- Height and spacing: Wall height and stud spacing (e.g., 16″ o.c., 24″ o.c.) must meet strength and deflection criteria in conjunction with the selected gauge.
- Head-of-wall movement: Is vertical deflection required? If yes, select slotted deflection track or deflection side clips with appropriate fastener patterns.
- Bracing strategy: Determine bridging/carrying channel size, location, and attachment method. Include bridging clips or windbrace if specified.
- Openings: Jamb, header, and sill details—including reinforcements—should match the stud depth and gauge.
- Acoustics: If sound transmission is a priority, consider resilient channel, staggered studs, or added cavity treatments as detailed by the design.
- Thermal and moisture: For exterior or high-humidity zones, verify insulation thicknesses, vapor management, and corrosion-resistance requirements.
- Fire and life safety: Confirm assembly ratings, firestopping details, and any required shaftwall/CH stud systems.
- Finishing trims: Specify J trim, L trim, cornerbeads, or reveals to match the assembly thickness.
- Documentation: Reference the specific product designations and the relevant load tables (metric or imperial) so field teams can verify compliance.
Estimating and procurement tips
Accurate takeoffs for 2×6-class stud walls hinge on capturing both the primary studs and the supporting components that make the system work as designed.
- Count studs and tracks together: Base track, head track (standard, deep, or slotted deflection), and any special profiles must match the stud depth.
- Account for bracing hardware: Include bridging/carrying channel lengths, bridging clips, and any specified windbrace or furring channel.
- Include clips and connectors: Deflection side clips or webslide clips for movement joints; jamb reinforcement where required.
- Don’t forget trims: J trim, L trim, J track, and cornerbeads by linear foot. Add waste factors for cuts and field adjustments.
- Fasteners and wire: Specify the correct screw types, lengths, and corrosion resistance, plus hanger/tie wire where applicable.
- Alternates by gauge: If the design allows, price alternate gauges that still meet performance to assess value.
Installation basics for consistent results
Follow the project specifications, manufacturer instructions, and applicable standards. The pointers below focus on coordination rather than replacing formal instructions.
- Layout and plumb: Snap accurate lines, verify base track fastening, and ensure walls are plumb before sheathing.
- Stud insertion and orientation: Install studs squarely within tracks, seating fully. Keep all studs oriented consistently for predictable screw engagement.
- Deflection details: If using slotted deflection track, maintain required fastener clearances. If using deflection side clips, follow specified screw patterns and slot orientation.
- Bridging timing: Install bridging/carrying channel and clips at the prescribed spacing before gypsum to stabilize the assembly.
- Openings and blocking: Frame and reinforce door/window openings per detail; install utility angles or flat strips where required for equipment mounts.
- Acoustic elements: When specified, attach resilient channel per layout, avoiding short-circuiting with unintended fasteners.
- Finish readiness: Use the correct trims (J trim, L trim, cornerbeads) and check plane alignment to minimize finishing corrections.
Common pitfalls and how to avoid them
- Assuming all “2×6” studs are identical: They are not. Confirm web depth, gauge, and flange width from the product literature.
- Mismatched tracks: Pair studs with the correct standard, deep, or slotted deflection track to avoid fit and performance issues.
- Skipping bracing: Omitting bridging or windbrace can lead to unacceptable deflection or instability.
- Improper head-of-wall movement: Rigidly fastening studs where deflection is required can cause damage. Use the specified deflection components correctly.
- Overlooking acoustic detailing: Installing resilient channel incorrectly (or fastening through it into studs) can negate its benefit.
- Inadequate documentation: Vague notes like “2×6 stud @ 16″ o.c.” without gauge, track type, and bracing details invite field confusion.
Frequently asked questions
Is a 2×6 steel stud actually 6 inches deep?
Not necessarily. The informal “2×6” label refers to a depth class rather than an exact dimension. Verify the true web depth, flange width, and gauge from the selected product’s literature to ensure correct fit with tracks and accessories.
When should I use slotted deflection track instead of standard track?
Use slotted deflection track when the head-of-wall connection needs to accommodate vertical movement (for example, floor live-load deflection above). It allows the wall to move relative to the structure while maintaining lateral stability as detailed. If a different approach is specified, a deflection side clip may be used instead. Always follow project documents and manufacturer instructions.
How do I brace 2×6 steel studs in tall partitions?
Designs often call for bridging/carrying channel at one or more elevations, attached with bridging clips. Windbrace may also be specified. The exact bracing type, spacing, and connection details depend on the wall height, stud gauge, spacing, and loads. Refer to the project’s qualified design professional and applicable product data.
Can I improve sound control with resilient channel on a 2×6 stud wall?
Yes, resilient channel is commonly used to reduce direct sound transmission by decoupling the gypsum board from the studs. For best results, follow the specified channel orientation, spacing, and fastening pattern, and avoid short-circuiting the channel with unintended fasteners.
What trims should I plan for with a 2×6 wall?
J trim, L trim, and J track address terminations and edges; 90°/130° cornerbead reinforces corners. Z-Bar and L track are used for specialty transitions and reveals. Select trims that match your wall thickness and finish plan.
